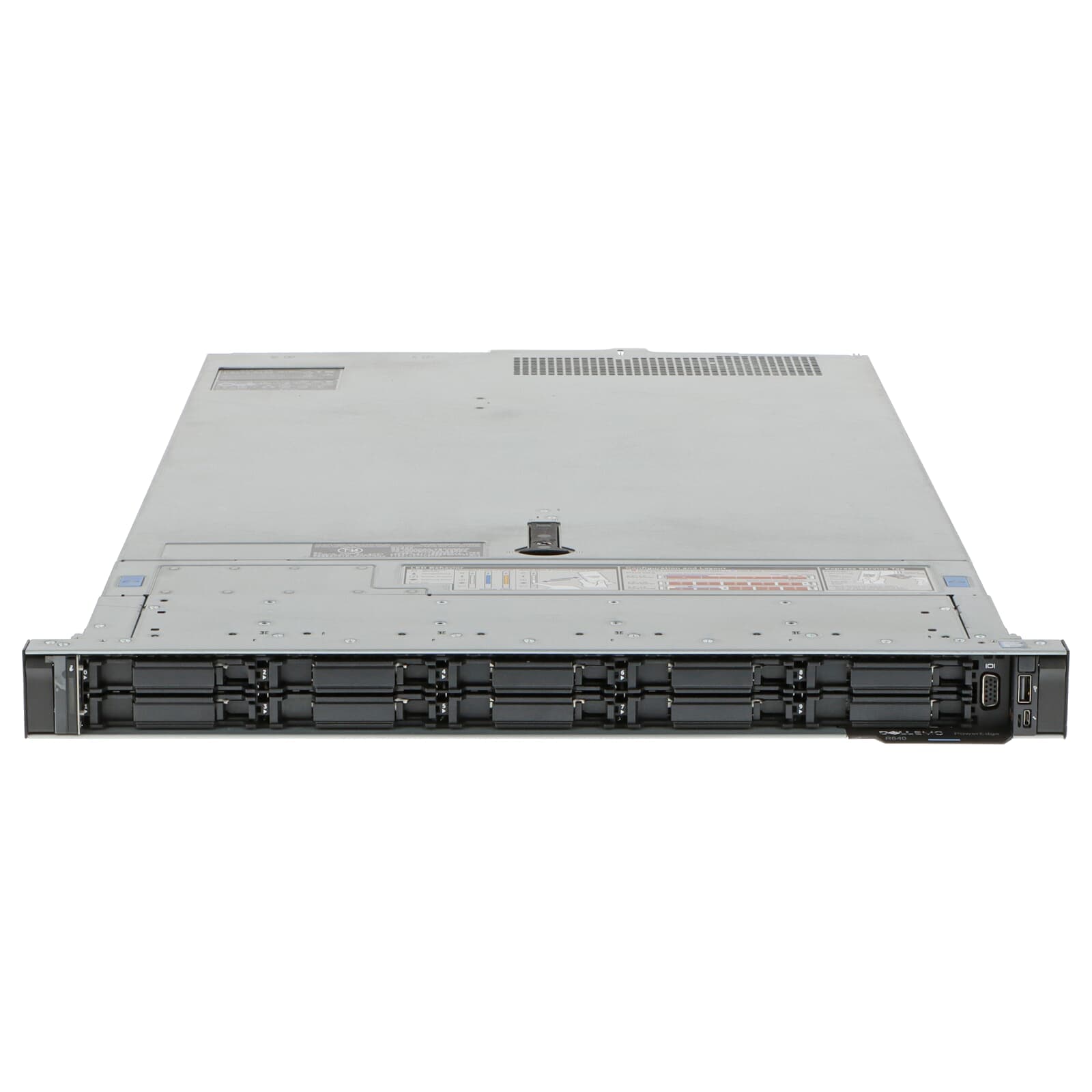

Dell PowerEdge R640 (10xSFF)
€1,190.00Refurbished
In stock
The Dell PowerEdge R640 is a dense 1U dual-socket rack server designed for high-performance computing. It supports 2nd Generation Intel Xeon Scalable processors, extensive DDR4 memory configurations, and high-speed NVMe storage options.
Specifications
- weight
- 21.9kg (48.3 lbs)
- chipset
- Intel C620 series (Intel Lewisburg)
- cooling
- Up to 8 hot plug fans with full redundancy
- processor
- Up to two 2nd Generation Intel Xeon Scalable processors (up to 28 cores per processor)
- management
- iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish, Quick Sync 2 (optional)
- rear_ports
- 1 x Dedicated iDRAC network port, 1 x Serial, 2 x USB 3.0, 1 x Video
- form_factor
- 1U Rack
- front_ports
- 1 x Dedicated iDRAC direct USB, 1 x USB 2.0, 1 x USB 3.0 (optional), 1 x Video
- memory_type
- RDIMM / LRDIMM (Registered ECC DDR4)
- socket_type
- LGA 3647
- memory_slots
- 24 DDR4 DIMM slots
- memory_speed
- Up to 2933 MT/s
- product_name
- Dell PowerEdge R640
- video_output
- 2 x VGA
- expansion_slots
- 3 x Gen3 PCIe slots (all x16), rNDC Connector
- network_options
- 4 x 1GbE, 2 x 10GbE + 2 x 1GbE, 4 x 10GbE, 2 x 25GbE
- rear_drive_bays
- Up to 2 x 2.5" SAS/SATA (HDD/SSD), NVMe SSD max 15.36TB
- dimensions_depth
- 808.5mm (31.8")
- dimensions_width
- 482.0mm (18.98")
- front_drive_bays
- Up to 10 x 2.5" SAS/SATA (HDD/SSD) with up to 8 NVMe SSD max 76.8TB or up to 10 NVMe drives max 64TB; or up to 4 x 3.5" SAS/SATA HDD max 64TB
- power_redundancy
- Hot plug power supplies with full redundancy
- dimensions_height
- 42.8mm (1.69")
- security_features
- TPM 1.2/2.0, TCM 2.0 (optional), Cryptographically signed firmware, Secure Boot, Silicon Root of Trust, System Erase, iDRAC9 Server Lockdown
- accelerator_support
- Up to 3 single-width GPU (NVIDIA T4) or up to 1 FPGA
- max_memory_capacity
- 3TB
- power_supply_options
- 495W, 750W, 1100W, 1600W (Platinum/Titanium options available)
- boot_optimized_storage
- BOSS (HWRAID 2 x M.2 SSDs 240 GB, 480 GB)
- persistent_memory_support
- Up to 12 Intel Optane persistent memory PMem (6.14TB max) or 12 NVDIMM (192GB max)
- storage_controllers_external
- H840, 12 Gbps SAS HBA, HBA355e
- storage_controllers_internal
- PERC H330, HBA330, HBA350i, H730P, H740P, H750
